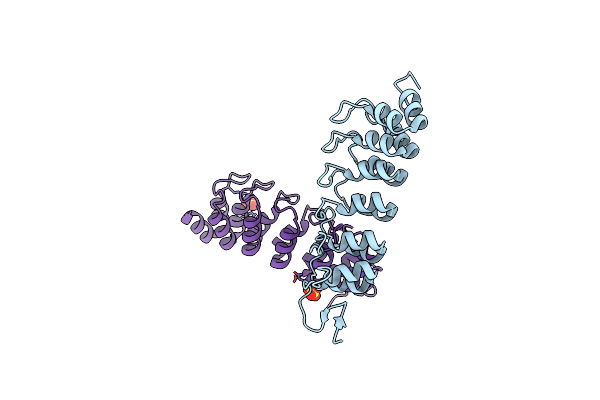

2F8Y image
Deposition Date 2005-12-04
Release Date 2006-04-04
Last Version Date 2023-08-30
Entry Detail
PDB ID:
2F8Y
Keywords:
TRANSCRIPTION
Title:
Crystal structure of human Notch1 ankyrin repeats to 1.55A resolution.
Biological Source:
Source Organism:
Homo sapiens (Taxon ID: 9606)
Host Organism:
Escherichia coli
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
1.55 Å
R-Value Free:
0.18
R-Value Work:
0.15
R-Value Observed:
0.15
Space Group:
P 65
2F8Y validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Notch homolog 1, translocation-associated (Drosophila)
Gene (Uniprot):NOTCH1
Chain IDs:A, B
Chain Length:223
Number of Molecules:2
Biological Source:Homo sapiens
UniProt ID:P46531 Pfam ID:PF00023, PF12796
Ligand Molecules
SO4
Primary Citation
Structural basis for cooperativity in recruitment of MAML coactivators to Notch transcription complexes.
Cell(Cambridge,Mass.) 124 973 983 (2006)
PMID: 16530044 DOI: 10.1016/j.cell.2005.12.037

Abstact

Notch receptors transduce essential developmental signals between neighboring cells by forming a complex that leads to transcription of target genes upon activation. We report here the crystal structure of a Notch transcriptional activation complex containing the ankyrin domain of human Notch1 (ANK), the transcription factor CSL on cognate DNA, and a polypeptide from the coactivator Mastermind-like-1 (MAML-1). Together, CSL and ANK create a groove to bind the MAML-1 polypeptide as a kinked, 70 A helix. The composite binding surface likely restricts the recruitment of MAML proteins to promoters on which Notch:CSL complexes have been preassembled, ensuring tight transcriptional control of Notch target genes.
