2ELB image
Deposition Date 2007-03-27
Release Date 2007-05-29
Last Version Date 2024-11-06
Entry Detail
PDB ID:
2ELB
Keywords:
Title:

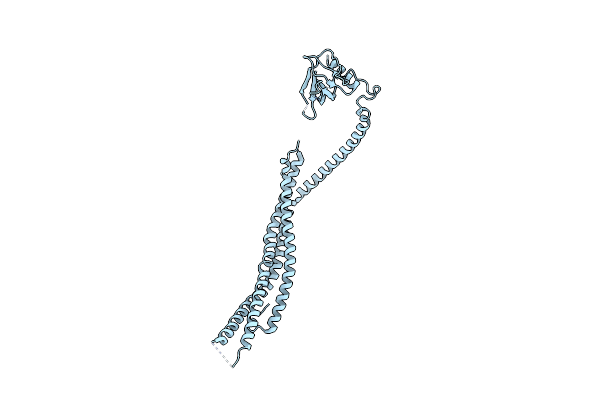

Crystal Structure of the BAR-PH domain of human APPL1
Biological Source:
Source Organism:
Homo sapiens (Taxon ID: 9606)
Method Details:
Experimental Method:
Resolution:
2.60 Å
R-Value Free:
0.32
R-Value Work:
0.23
R-Value Observed:
0.23
Space Group:
P 21 21 2
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Adapter protein containing PH domain, PTB domain and leucine zipper motif 1
Gene (Uniprot):APPL1
Chain IDs:A
Chain Length:396
Number of Molecules:1
Biological Source:Homo sapiens
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
MSE A MET SELENOMETHIONINE
Ligand Molecules
Primary Citation
Crystal Structures of the BAR-PH and PTB Domains of Human APPL1
Structure 15 525 533 (2007)
PMID: 17502098 DOI: 10.1016/j.str.2007.03.011

Abstact

APPL1 interacts with adiponectin receptors and other important signaling molecules. It contains a BAR and a PH domain near its N terminus, and the two domains may function as a unit (BAR-PH domain). We report here the crystal structures of the BAR-PH and PTB domains of human APPL1. The structures reveal novel features for BAR domain dimerization and for the interactions between the BAR and PH domains. The BAR domain dimer of APPL1 contains two four-helical bundles, whereas other BAR domain dimers have only three helices in each bundle. The PH domain is located at the opposite ends of the BAR domain dimer. Yeast two-hybrid assays confirm the interactions between the BAR and PH domains. Lipid binding assays show that the BAR, PH, and PTB domains can bind phospholipids. The ability of APPL1 to interact with multiple signaling molecules and phospholipids supports an important role for this adaptor in cell signaling.
