ISDA: 1TNR

Deposition Date 1994-05-09

Release Date 1994-07-31

Last Version Date 2024-10-16

Entry Detail

PDB ID:

1TNR

Keywords:

COMPLEX(LYMPHOKINE/RECEPTOR)

Title:

CRYSTAL STRUCTURE OF THE SOLUBLE HUMAN 55 KD TNF RECEPTOR-HUMAN TNF-BETA COMPLEX: IMPLICATIONS FOR TNF RECEPTOR ACTIVATION

Biological Source:

Source Organism(s):

Homo sapiens (Taxon ID: 9606)

Expression System(s):

Escherichia coli, Sf9 cells

Method Details:

Experimental Method:

X-RAY DIFFRACTION

Resolution:

2.85 Å

R-Value Work:

0.16

R-Value Observed:

0.16

Space Group:

I 2 3

Download Validation Report

Macromolecular Entities

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:TUMOR NECROSIS FACTOR BETA
Gene (Uniprot):LTA
Chain IDs:A
Chain Length:144
Number of Molecules:1
Biological Source:Homo sapiens

UniProt ID:P01374 Pfam ID:PF00229

Structures with similar UniProt ID

Protein Blast

Polymer Type:polypeptide(L)
Molecule:TUMOR NECROSIS FACTOR RECEPTOR P55
Gene (Uniprot):TNFRSF1A
Chain IDs:B (auth: R)
Chain Length:139
Number of Molecules:1
Biological Source:Homo sapiens

UniProt ID:P19438 Pfam ID:PF00020

Primary Citation

Crystal structure of the soluble human 55 kd TNF receptor-human TNF beta complex: implications for TNF receptor activation.

Banner, D.W, D'Arcy, A, Janes, W, Gentz, R, Schoenfeld, H.J, Broger, C, Loetscher, H, Lesslauer, W, D'Arcy, A, Banner, D.W, Janes, W, Winkler, F.K, Loetscher, H, Schonfeld, H.J, Zulauf, M, Gentz, R, Lesslauer, W.Show

Cell(Cambridge,Mass.) 73 431 445 (1993)

PMID: 8387891 DOI: 10.1016/0092-8674(93)90132-a

Abstact

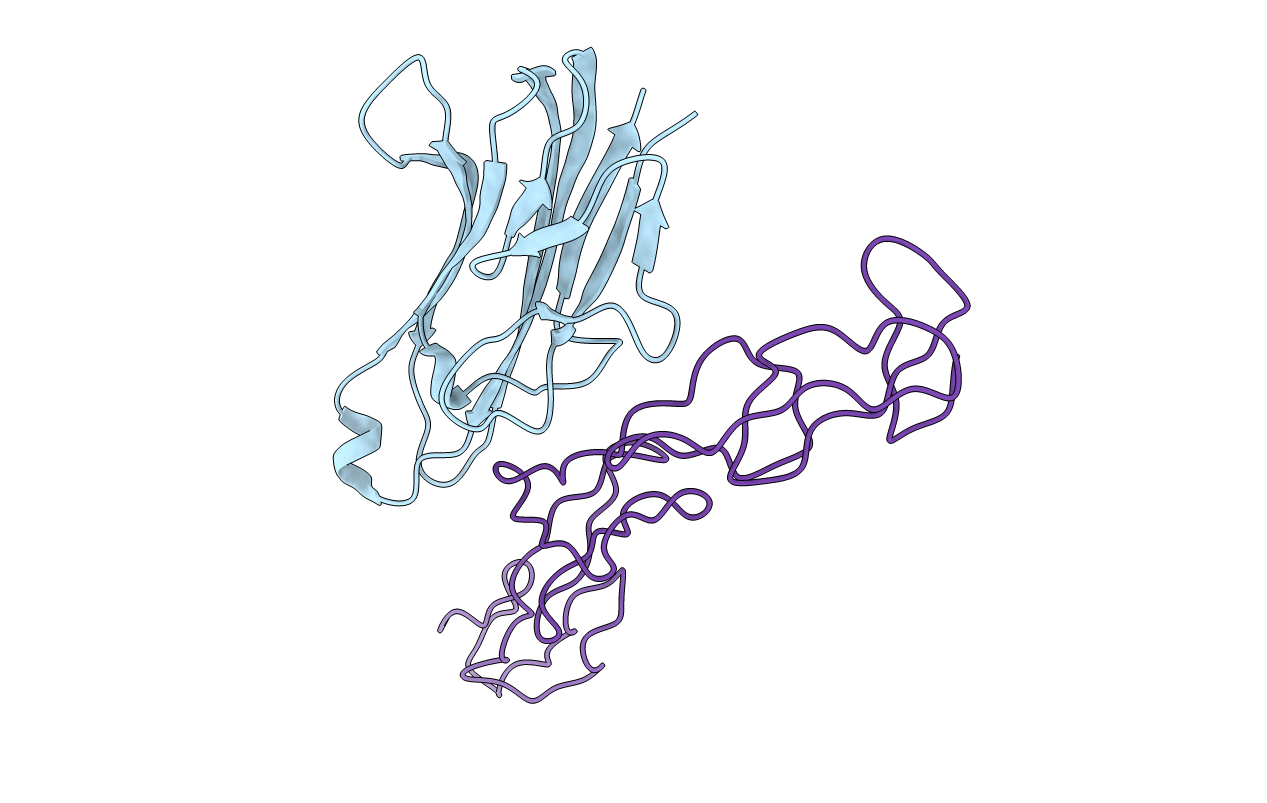

The X-ray crystal structure of the complex of the extracellular domain of the human 55 kd tumor necrosis factor (TNF) receptor with human TNF beta has been determined at 2.85 A resolution. The complex has three receptor molecules bound symmetrically to one TNF beta trimer. The receptor fragment, a very elongated end to end assembly of four similar folding domains, binds in the groove between two adjacent TNF beta subunits. The structure of the complex defines the orientation of the ligand with respect to the cell membrane and provides a model for TNF receptor activation. The novel fold of the TNF receptor structure is likely to be representative of the nerve growth factor (NGF)/TNF receptor family as a whole.
