1o5k image
Deposition Date 2003-09-22
Release Date 2003-10-07
Last Version Date 2023-11-29
Entry Detail
PDB ID:
1O5K
Keywords:
LYASE
Title:

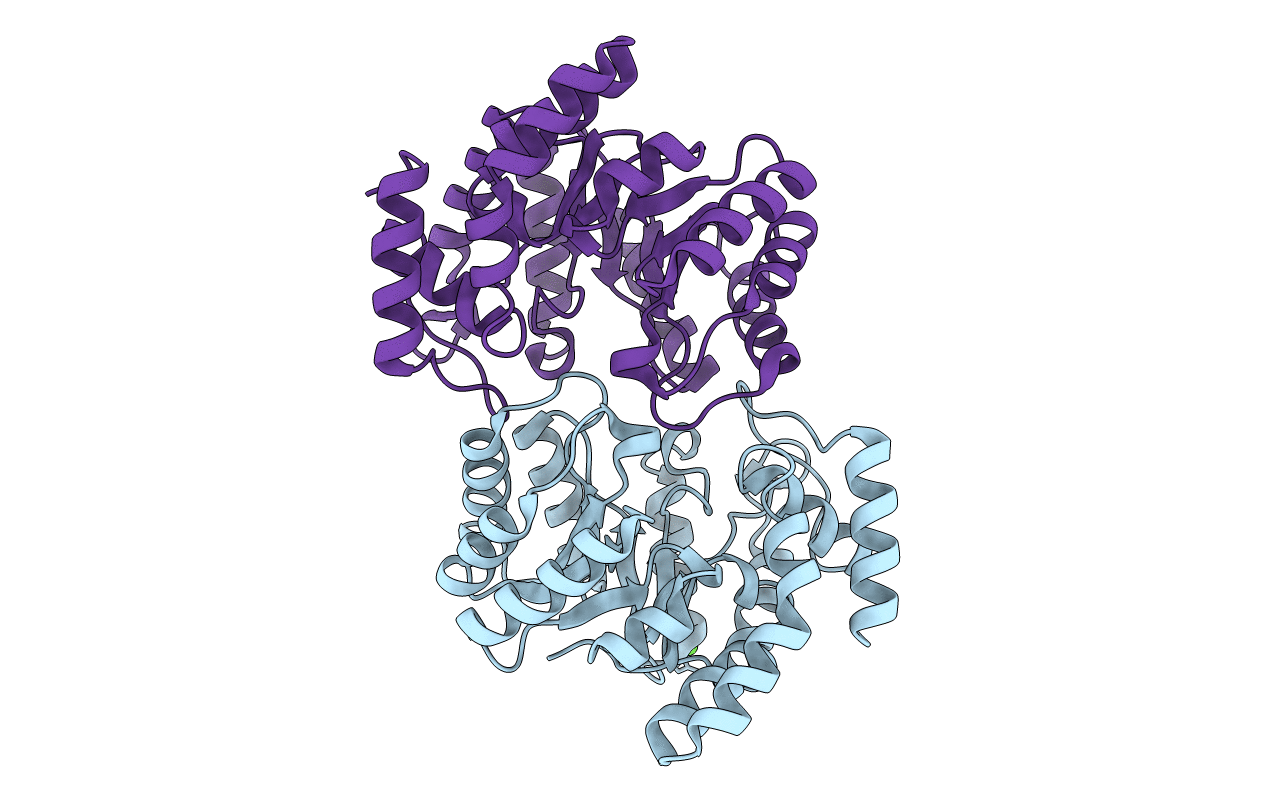

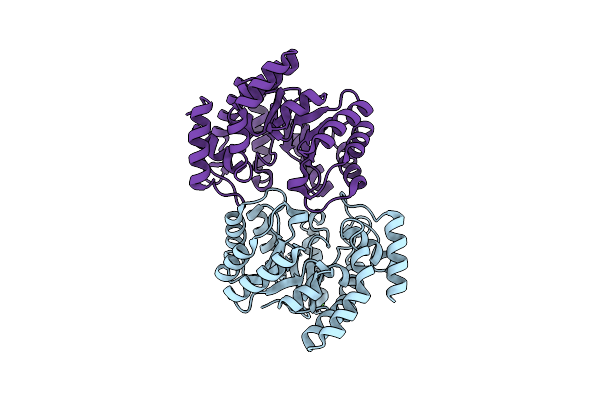

Crystal structure of Dihydrodipicolinate synthase (TM1521) from Thermotoga maritima at 1.80 A resolution
Biological Source:
Source Organism:
Thermotoga maritima (strain ATCC 43589 / MSB8 / DSM 3109 / JCM 10099) (Taxon ID: 243274)
Host Organism:
Escherichia coli
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
1.80 Å
R-Value Free:
0.18
R-Value Work:
0.13
R-Value Observed:
0.14
Space Group:
C 2 2 21
1o5k validation report
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:4-hydroxy-tetrahydrodipicolinate synthase
Gene (Uniprot):dapA
Chain IDs:A, B
Chain Length:306
Number of Molecules:2
Biological Source:Thermotoga maritima (strain ATCC 43589 / MSB8 / DSM 3109 / JCM 10099)
UniProt ID:Q9X1K9 Pfam ID:PF00701 EC:4.3.3.7
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
KPI A LYS modified residue
Ligand Molecules
CA
Primary Citation
Crystal structure of Dihydrodipicolinate synthase (TM1521) from Thermotoga maritima at 1.80 A resolution
To be published ? ? ? (?)
Primary Citation of related structures
1O5K
