1VM9 image
Deposition Date 2004-09-13
Release Date 2004-09-21
Last Version Date 2023-12-27
Entry Detail
PDB ID:
1VM9
Title:
The X-ray Structure of the cys84ala cys85ala double mutant of the [2Fe-2S] Ferredoxin subunit of Toluene-4-Monooxygenase from Pseudomonas Mendocina KR1
Biological Source:
Source Organism:
Method Details:
Experimental Method:
Resolution:
1.48 Å
R-Value Free:
0.17
R-Value Work:
0.15
R-Value Observed:
0.15
Space Group:
C 2 2 21
Macromolecular Entities
Polymer Type:polypeptide(L)
Molecule:Toluene-4-monooxygenase system protein C
Gene (Uniprot):tmoC
Mutations:C84A,C85A
Chain IDs:A
Chain Length:111
Number of Molecules:1
Biological Source:Pseudomonas mendocina
Primary Citation
Structure of T4moC, the Rieske-type ferredoxin component of toluene 4-monooxygenase.
Acta Crystallogr.,Sect.D 62 476 482 (2006)
PMID: 16627939 DOI: 10.1107/S0907444906006056

Abstact

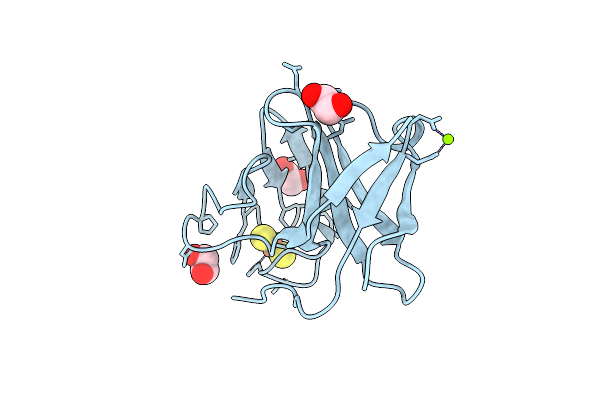

The structure of the Rieske-type ferredoxin (T4moC) from toluene 4-monooxygenase was determined by X-ray crystallography in the [2Fe-2S](2+) state at a resolution of 1.48 A using single-wavelength anomalous dispersion phasing with the [2Fe-2S] center. The structure consists of ten beta-strands arranged into the three antiparallel beta-sheet topology observed in all Rieske proteins. Trp69 of T4moC is adjacent to the [2Fe-2S] centre, which displaces a loop containing the conserved Pro81 by approximately 8 A away from the [2Fe-2S] cluster compared with the Pro loop in the closest structural and functional homolog, the Rieske-type ferredoxin BphF from biphenyl dioxygenase. In addition, T4moC contains five hydrogen bonds to the [2Fe-2S] cluster compared with three hydrogen bonds in BphF. Moreover, the electrostatic surface of T4moC is distinct from that of BphF. These structural differences are identified as possible contributors to the evolutionary specialization of soluble Rieske-type ferredoxins between the diiron monooxygenases and cis-dihydrodiol-forming dioxygenases.
