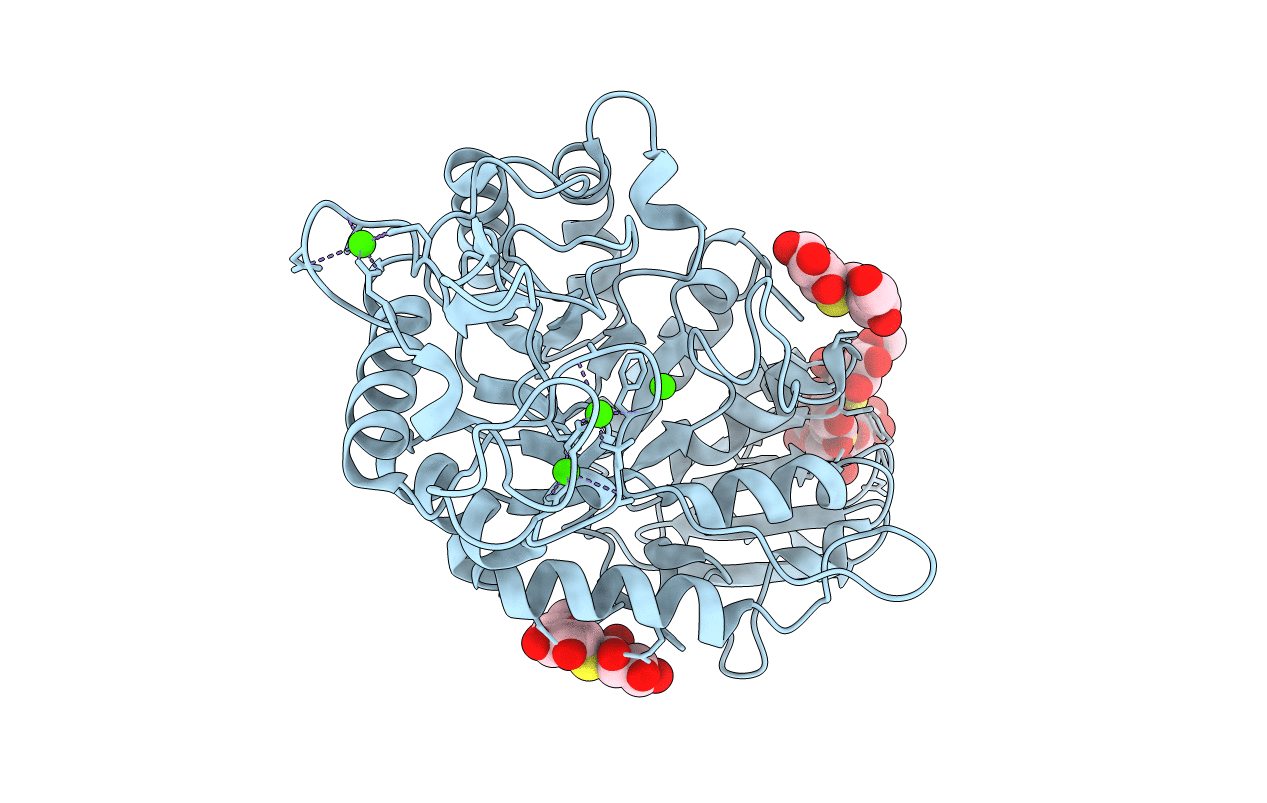

1P6W image
Deposition Date 2003-04-30
Release Date 2003-10-14
Last Version Date 2023-08-16
Entry Detail
PDB ID:
1P6W
Keywords:
Title:

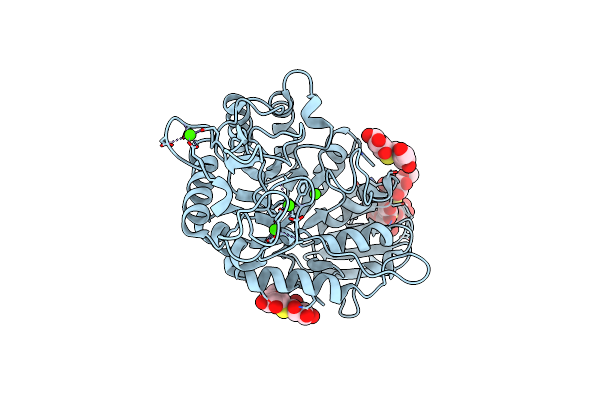

Crystal structure of barley alpha-amylase isozyme 1 (AMY1) in complex with the substrate analogue, methyl 4I,4II,4III-tri-thiomaltotetraoside (thio-DP4)
Biological Source:
Source Organism:
Hordeum vulgare (Taxon ID: 4513)
Host Organism:
Method Details:
Experimental Method:
Resolution:
2.00 Å
R-Value Free:
0.21
R-Value Work:
0.17
R-Value Observed:
0.17
Space Group:
P 21 21 2
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:PROTEIN (Alpha-amylase type A isozyme)
Gene (Uniprot):AMY1.1
Chain IDs:A
Chain Length:405
Number of Molecules:1
Biological Source:Hordeum vulgare
Ligand Molecules
Primary Citation
The structure of barley alpha-amylase isozyme 1 reveals a novel role of domain C in substrate recognition and binding: a pair of sugar tongs
Structure 11 973 984 (2003)
PMID: 12906828 DOI: 10.1016/S0969-2126(03)00151-5

Abstact

Though the three-dimensional structures of barley alpha-amylase isozymes AMY1 and AMY2 are very similar, they differ remarkably from each other in their affinity for Ca(2+) and when interacting with substrate analogs. A surface site recognizing maltooligosaccharides, not earlier reported for other alpha-amylases and probably associated with the different activity of AMY1 and AMY2 toward starch granules, has been identified. It is located in the C-terminal part of the enzyme and, thus, highlights a potential role of domain C. In order to scrutinize the possible biological significance of this domain in alpha-amylases, a thorough comparison of their three-dimensional structures was conducted. An additional role for an earlier-identified starch granule binding surface site is proposed, and a new calcium ion is reported.
