1NN7 image
Deposition Date 2003-01-13
Release Date 2003-07-15
Last Version Date 2023-08-16
Entry Detail
PDB ID:
1NN7
Title:

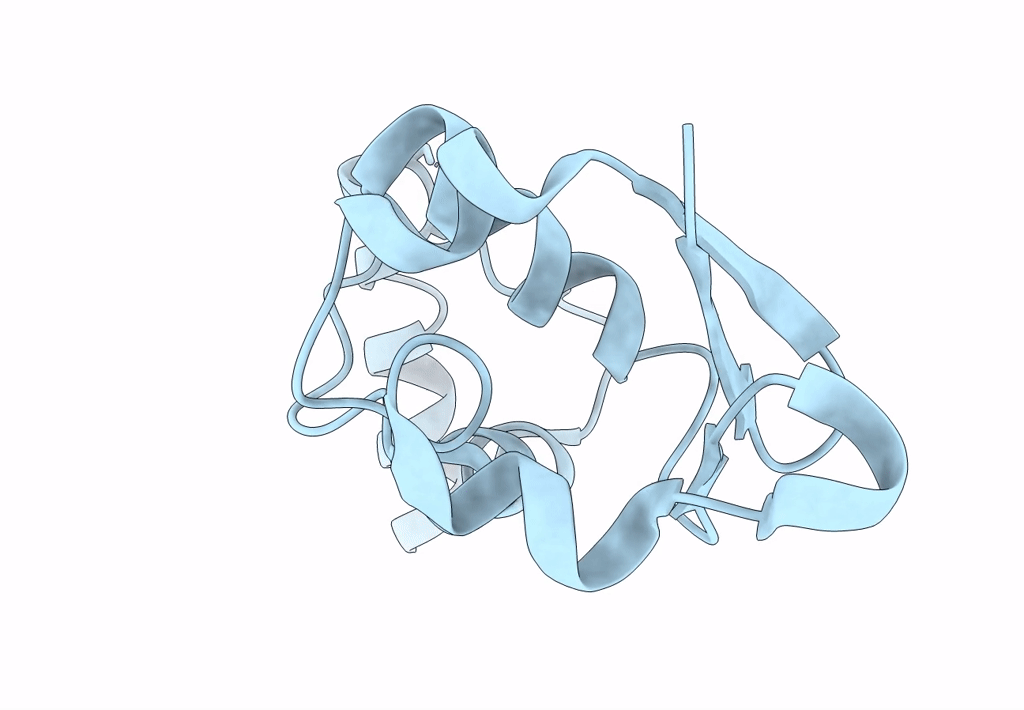

Crystal Structure Of The Tetramerization Domain Of The Shal Voltage-Gated Potassium Channel
Biological Source:
Source Organism:
Host Organism:
Method Details:
Experimental Method:
Resolution:
2.10 Å
R-Value Free:
0.27
R-Value Work:
0.23
Space Group:
P 4 21 2
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:potassium channel Kv4.2
Gene (Uniprot):Kcnd2
Chain IDs:A
Chain Length:105
Number of Molecules:1
Biological Source:Rattus norvegicus
Ligand Molecules
Primary Citation
Determining the basis of channel-tetramerization specificity by x-ray crystallography and a sequence-comparison algorithm: Family values (FamVal)
Proc.Natl.Acad.Sci.USA 100 8670 8675 (2003)
PMID: 12835418 DOI: 10.1073/pnas.1432840100

Abstact

We have developed a semiempirical algorithm called Family Values (FamVal), which identifies residues that encode functional specificity in a protein sequence. Given a multiple sequence alignment (MSA) grouped into functionally distinct subfamilies, FamVal calculates a specificity score for each subfamily at every amino acid position of an MSA. This algorithm was used to predict specificity-encoding positions within the tetramerization assembly (T1) domain of voltage-gated potassium (Kv) channel subfamilies Kv3 and Kv4. The importance of one such position (Arg to Ala at MSA position 93) was confirmed by in vitro pull-down assays. The structural basis of this assembly discrimination was elucidated by determining the crystal structure of the Kv4 T1 domain and comparing it to the Kv3 T1 domain.
