1NDG image
Deposition Date 2002-12-09
Release Date 2003-06-03
Last Version Date 2024-10-16
Entry Detail
PDB ID:
1NDG
Title:

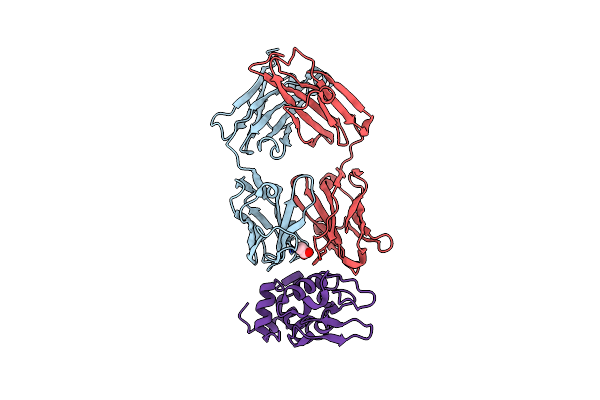

Crystal structure of Fab fragment of antibody HyHEL-8 complexed with its antigen lysozyme
Biological Source:
Source Organism:
Mus musculus (Taxon ID: 10090)
Gallus gallus (Taxon ID: 9031)
Host Organism:
Method Details:
Experimental Method:
Resolution:
1.90 Å
R-Value Free:
0.24
R-Value Work:
0.20
R-Value Observed:
0.20
Space Group:
P 42 21 2
Macromolecular Entities
Polymer Type:polypeptide(L)
Molecule:antibody kappa light chain
Gene (Uniprot):Igkc
Chain IDs:A
Chain Length:214
Number of Molecules:1
Biological Source:Mus musculus
Polymer Type:polypeptide(L)
Molecule:immunoglobulin gamma 1 chain
Gene (Uniprot):Ighg2a
Chain IDs:B
Chain Length:210
Number of Molecules:1
Biological Source:Mus musculus
Polymer Type:polypeptide(L)
Molecule:Lysozyme C
Gene (Uniprot):LYZ
Mutations:R61A
Chain IDs:C
Chain Length:129
Number of Molecules:1
Biological Source:Gallus gallus
Ligand Molecules
Primary Citation
X-ray snapshots of the maturation of an antibody response to a protein antigen
Nat.Struct.Biol. 10 482 488 (2003)
PMID: 12740607 DOI: 10.1038/nsb930

Abstact

The process whereby the immune system generates antibodies of higher affinities during a response to antigen (affinity maturation) is a prototypical example of molecular evolution. Earlier studies have been confined to antibodies specific for small molecules (haptens) rather than for proteins. We compare the structures of four antibodies bound to the same site on hen egg white lysozyme (HEL) at different stages of affinity maturation. These X-ray snapshots reveal that binding is enhanced, not through the formation of additional hydrogen bonds or van der Waals contacts or by an increase in total buried surface, but by burial of increasing amounts of apolar surface at the expense of polar surface, accompanied by improved shape complementarity. The increase in hydrophobic interactions results from highly correlated rearrangements in antibody residues at the interface periphery, adjacent to the central energetic hot spot. This first visualization of the maturation of antibodies to protein provides insights into the evolution of high affinity in other protein-protein interfaces.
