1MYW image
Deposition Date 2002-10-04
Release Date 2003-01-14
Last Version Date 2024-10-16
Entry Detail
PDB ID:
1MYW
Title:

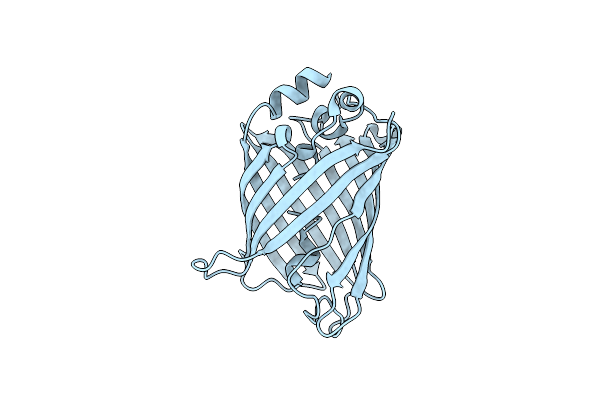

CRYSTAL STRUCTURE OF A YELLOW FLUORESCENT PROTEIN WITH IMPROVED MATURATION AND REDUCED ENVIRONMENTAL SENSITIVITY
Biological Source:
Source Organism:
Method Details:
Experimental Method:
Resolution:
2.20 Å
R-Value Free:
0.24
R-Value Work:
0.21
R-Value Observed:
0.21
Space Group:
P 31 1 2
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Green fluorescent protein
Gene (Uniprot):GFP
Mutagens:F46L, F64L, S65G, V68L, S72A, M153T, V163A, S175G, T203Y
Chain IDs:A
Chain Length:239
Number of Molecules:1
Biological Source:Aequorea victoria
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
CR2 A GLY ?
Primary Citation
Crystal Structure of Venus, a Yellow Fluorescent Protein with Improved Maturation and Reduced Environmental Sensitivity
J.Biol.Chem. 277 50573 50578 (2002)
PMID: 12370172 DOI: 10.1074/jbc.M209524200

Abstact

Yellow emission variants of green fluorescent protein (GFP) have been found useful in a variety of applications in biological systems due to their red-shifted emission spectrum and sensitivity to environmental parameters, such as pH and ionic strength. However, slow maturation properties and new requirements for more intense fluorescence necessitated further mutagenesis studies of these proteins. Venus, a new variant with improved maturation and brightness, as well as reduced environmental dependence, was recently developed by introducing five mutations into the well characterized variant, enhanced yellow fluorescent protein (EYFP). In this paper, we present the crystal structure of Venus at 2.2 A resolution, which enabled us to correlate its novel features with these mutation points. The rearrangement of several side chains near the chromophore, initiated by the F46L mutation, was found to improve maturation at 37 degrees C by removing steric and energetic constraints, which may hinder folding of the polypeptide chain, and by accelerating the oxidation of the Calpha-Cbeta bond of Tyr(66) during chromophore formation. M153T, V163A, and S175G were also found to improve the rate of maturation by creating regions of greater flexibility. F64L induced large conformational changes in the molecule, leading to the removal of halide sensitivity by preventing ion access to the binding site.
