ISDA

Deposition Date 2002-09-04

Release Date 2002-12-23

Last Version Date 2024-11-20

Entry Detail

PDB ID:

1MMJ

Keywords:

HYDROLASE

Title:

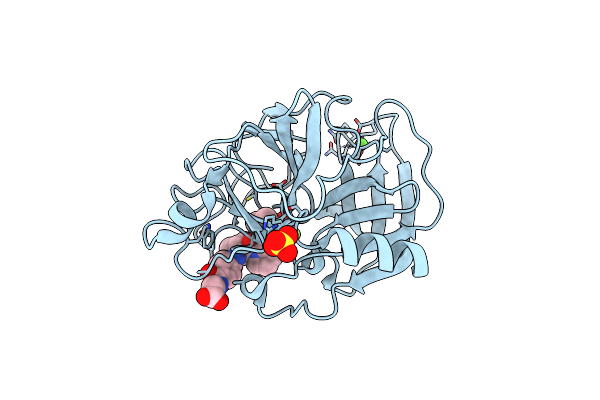

Porcine pancreatic elastase complexed with a potent peptidyl inhibitor, FR136706

Biological Source:

Source Organism:

Sus scrofa (Taxon ID: 9823)

Method Details:

Experimental Method:

X-RAY DIFFRACTION

Resolution:

2.20 Å

R-Value Free:

0.24

R-Value Work:

0.21

R-Value Observed:

0.21

Space Group:

P 21 21 21

Download Validation Report

Macromolecular Entities

Protein Blast

Polymer Type:polypeptide(L)
Molecule:elastase 1
Gene (Uniprot):CELA1
Chain IDs:A (auth: N)
Chain Length:240
Number of Molecules:1
Biological Source:Sus scrofa

UniProt ID:P00772 Pfam ID:PF00089 EC:3.4.21.36

Ligand Molecules

FR1

SO4

Primary Citation

True interaction mode of porcine pancreatic elastase with FR136706, a potent peptidyl inhibitor

Kinoshita, T, Nakanishi, I, Sato, A, Tada, T.Show

Bioorg.Med.Chem.Lett. 13 21 24 (2003)

PMID: 12467609 DOI: 10.1016/S0960-894X(02)00852-1

Abstact

The crystal structure of porcine pancreatic elastase (PPE) complexed with a potent peptidyl inhibitor, FR136706, was solved at 2.2A resolution. FR136706 fits snugly into the extended active site pocket. The benzene moiety of FR136706 induced dramatic movement of the side chain moiety of Arg217 and both moieties formed a pi-pi interaction, which has never been found previously in structures of PPE complexed with inhibitors. This novel interaction mode may lead to design of new types of inhibitors.
