Deposition Date 2002-08-23
Release Date 2002-12-13
Last Version Date 2024-10-30
Entry Detail
PDB ID:
1MIW
Title:

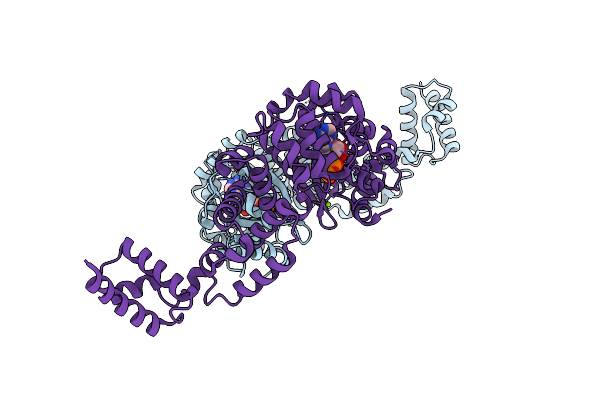

Crystal structure of Bacillus stearothermophilus CCA-adding enzyme in complex with ATP
Biological Source:
Source Organism:
Host Organism:
Method Details:
Experimental Method:
Resolution:
3.00 Å
R-Value Free:
0.26
R-Value Work:
0.22
R-Value Observed:
0.23
Space Group:
P 31 2 1
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:tRNA CCA-adding enzyme
Gene (Uniprot):cca
Chain IDs:A, B
Chain Length:404
Number of Molecules:2
Biological Source:Geobacillus stearothermophilus
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
MSE A MET SELENOMETHIONINE
Primary Citation
Crystal structures of the Bacillus stearothermophilus CCA-adding enzyme and its complexes with ATP or CTP
Cell(Cambridge,Mass.) 111 815 824 (2002)
PMID: 12526808 DOI: 10.1016/S0092-8674(02)01115-7

Abstact

CCA-adding enzymes polymerize CCA onto the 3' terminus of immature tRNAs without using a nucleic acid template. The 3.0 A resolution crystal structures of the CCA-adding enzyme from Bacillus stearothermophilus and its complexes with ATP or CTP reveal a seahorse-shaped subunit consisting of four domains: head, neck, body, and tail. The head is structurally homologous to the palm domain of DNA polymerase beta but has additional structural features and functions. The neck, body, and tail represent new protein folding motifs. The neck provides a specific template for the incoming ATP or CTP, whereas the body and tail may bind tRNA. Each subunit has one active site capable of switching its base specificity between ATP and CTP, an important component of the CCA-adding mechanism.
