1JVP image
Deposition Date 2001-08-31
Release Date 2001-12-21
Last Version Date 2024-02-07
Entry Detail
PDB ID:
1JVP
Keywords:
Title:

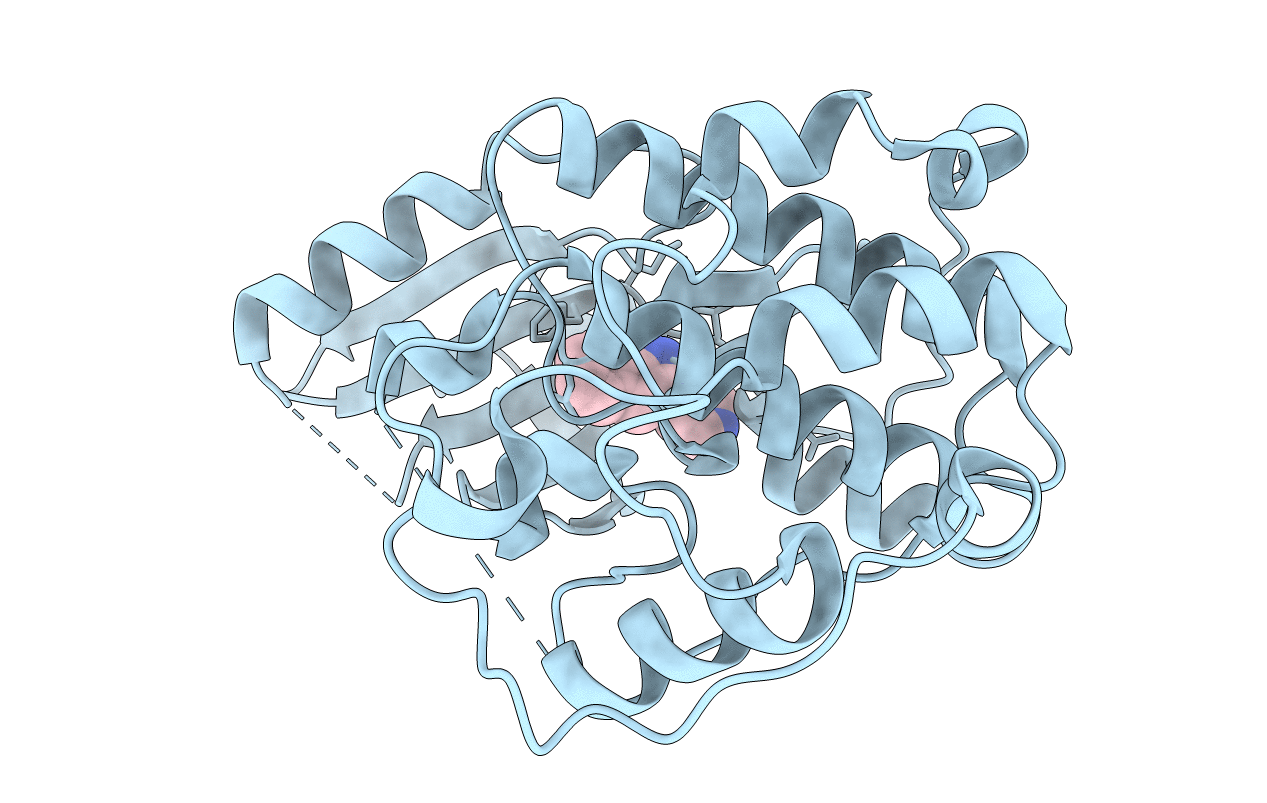

Crystal structure of human CDK2 (unphosphorylated) in complex with PKF049-365
Biological Source:
Source Organism:
Homo sapiens (Taxon ID: 9606)
Host Organism:
Method Details:
Experimental Method:
Resolution:
1.53 Å
R-Value Free:
0.25
R-Value Work:
0.20
R-Value Observed:
0.21
Space Group:
P 21 21 21
Macromolecular Entities
Polymer Type:polypeptide(L)
Molecule:Cell division protein kinase 2
Gene (Uniprot):CDK2
Chain IDs:A (auth: P)
Chain Length:298
Number of Molecules:1
Biological Source:Homo sapiens
Ligand Molecules
Primary Citation
Structure-based design and protein X-ray analysis of a protein kinase inhibitor.
Bioorg.Med.Chem.Lett. 12 221 224 (2002)
PMID: 11755359 DOI: 10.1016/S0960-894X(01)00715-6

Abstact

A 5-aryl-1H-pyrazole molecular scaffold was designed to ligate the ATP binding site of cyclin dependent kinase 2 (CDK2) on the basis of crystallographic information. A search of the compound collection of Novartis using this scaffold as substructure query led to the identification of PKF049-365 as a representative of a new class of inhibitors of the cell cycle kinases CDK1/2. The three-dimensional structure of CDK2 in complex with PKF049-365 was subsequently determined by protein crystallography and refined to 1.53 A resolution. The X-ray analysis confirmed the binding mode expected from the design hypothesis. In addition, it revealed an alternative binding orientation involving a second tautomeric form of the inhibitor that was not envisaged during the design stage.
