1IEE image
Entry Detail
PDB ID:
1IEE
Keywords:
Title:

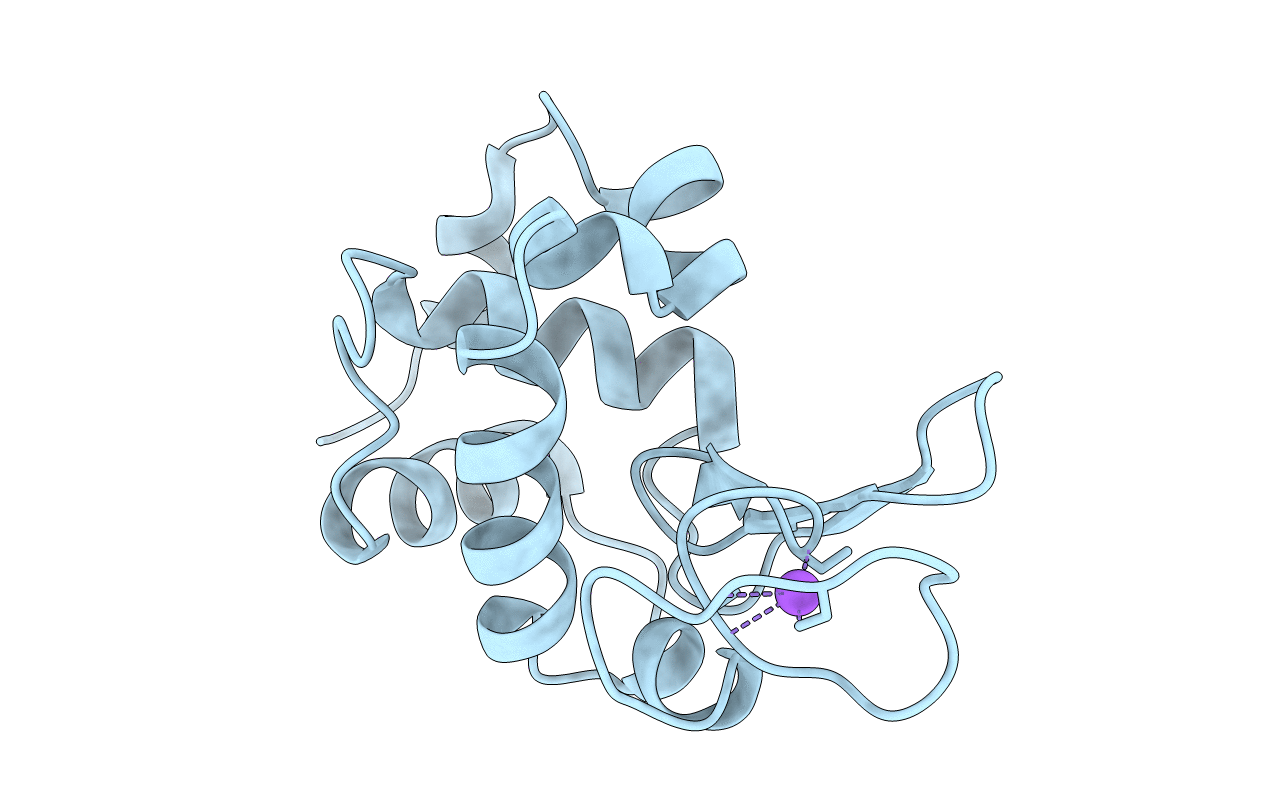

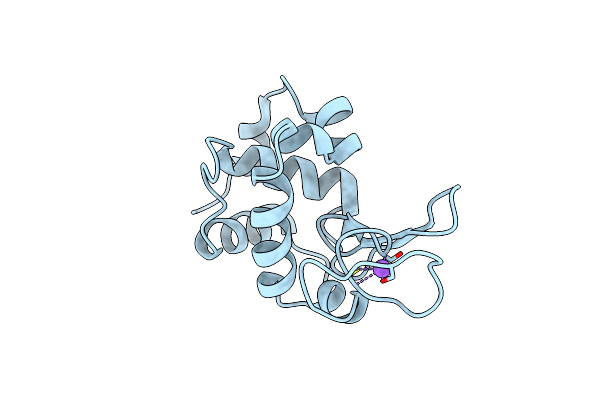

STRUCTURE OF TETRAGONAL HEN EGG WHITE LYSOZYME AT 0.94 A FROM CRYSTALS GROWN BY THE COUNTER-DIFFUSION METHOD
Biological Source:
Source Organism:
PDB Version:
Deposition Date:
2001-04-09
Release Date:
2001-08-08
Method Details:
Experimental Method:
Resolution:
0.94 Å
R-Value Free:
0.15
R-Value Work:
0.12
R-Value Observed:
0.12
Space Group:
P 43 21 2
Macromolecular Entities
Polymer Type:polypeptide(L)
Description:LYSOZYME C
Chain IDs:A
Chain Length:129
Number of Molecules:1
Biological Source:Gallus gallus
Primary Citation
Structure of tetragonal hen egg-white lysozyme at 0.94 A from crystals grown by the counter-diffusion method.
Acta Crystallogr.,Sect.D 57 1119 1126 (2001)
PMID: 11468395 DOI: 10.1107/S0907444901008873

Abstact

Very high quality crystals of tetragonal hen egg-white lysozyme were grown in the Advanced Protein Crystallization Facility (APCF) on board the Space Shuttle using a modified free-interface diffusion (FID) reactor designed ad hoc to have a longer diffusion path. This design allows the performance of true counter-diffusion experiments. Crystals were obtained under the classical chemical conditions defined 50 y ago with NaCl as a crystallizing agent and acetate pH 4.5 as a buffer. Counter-diffusion crystallization allows a "physical" instead of chemical optimization of growth conditions: indeed, this method screens for the best supersaturation conditions in a single trial and yields crystals of very high quality. A complete diffraction data set was collected at atomic resolution from one of these crystals using synchrotron radiation at the DESY-EMBL beamlines. The overall R(merge) on intensities in the resolution range 31-0.94 A was 5.2% and the data were 98.9% complete. Refinement was carried out with the programs CNS and SHELX97 to a final crystallographic R factor of 12.26% for 72 390 reflections. A mean standard uncertainty in the atomic positions of 0.024 A was estimated from inversion of blocked least-squares matrices. 22 side chains show alternate conformations and the loop 59-75 adopts in the same crystal packing two conformations that were observed for either triclinic or tetragonal lysozyme in previous high-resolution studies. In addition to 255 water molecules, the crystallizing agent (one hexacoordinated sodium ion and five chloride anions) participates in the ordered lysozyme hydration shell.

Legend

Protein

Chemical

Disease

Primary Citation of related structures
