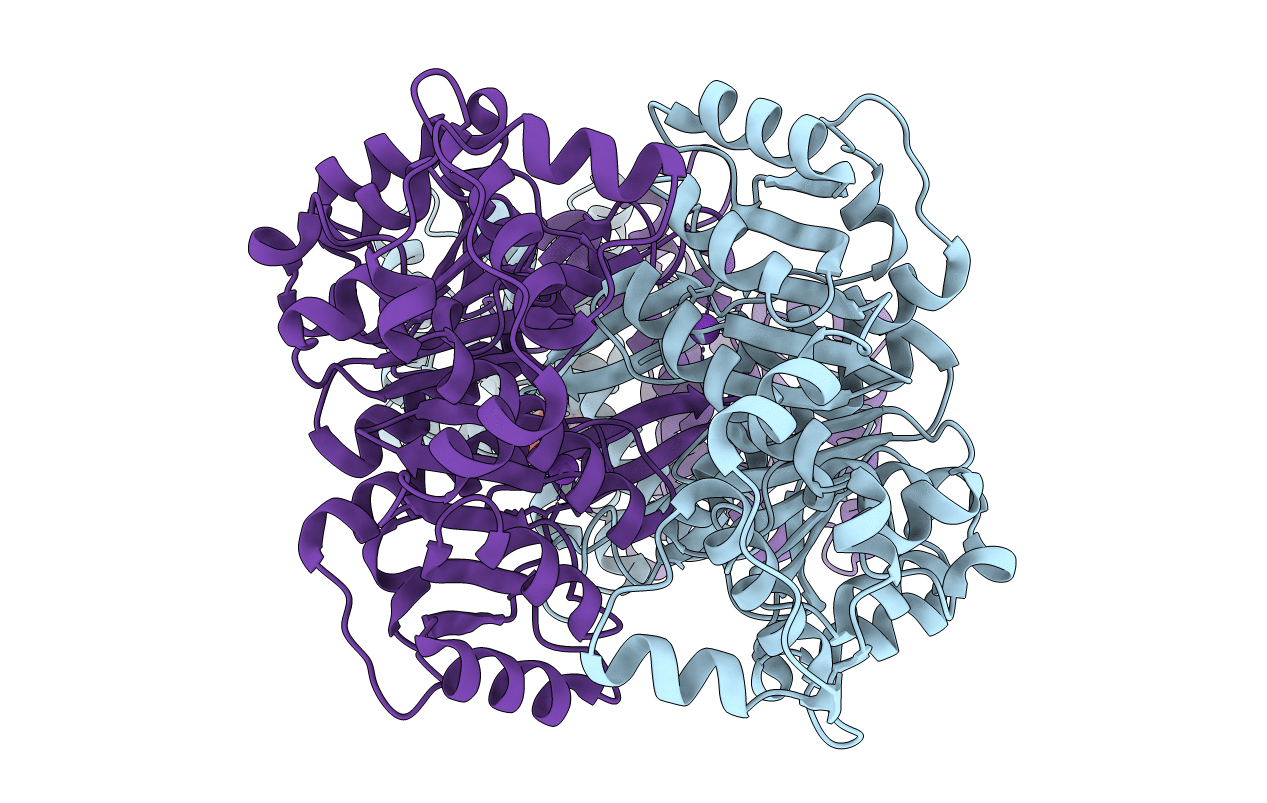

1G8M image
Deposition Date 2000-11-17
Release Date 2001-04-27
Last Version Date 2024-10-16
Entry Detail
PDB ID:
1G8M
Title:
CRYSTAL STRUCTURE OF AVIAN ATIC, A BIFUNCTIONAL TRANSFORMYLASE AND CYCLOHYDROLASE ENZYME IN PURINE BIOSYNTHESIS AT 1.75 ANG. RESOLUTION
Biological Source:
Source Organism:
Gallus gallus (Taxon ID: 9031)
Host Organism:
Method Details:
Experimental Method:
Resolution:
1.75 Å
R-Value Free:
0.21
R-Value Work:
0.19
Space Group:
P 1 21 1
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:AICAR TRANSFORMYLASE-IMP CYCLOHYDROLASE
Gene (Uniprot):ATIC
Mutagens:MET REPLACED BY SE-MET (MSE)
Chain IDs:A, B
Chain Length:593
Number of Molecules:2
Biological Source:Gallus gallus
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
MSE A MET SELENOMETHIONINE
Primary Citation
Crystal structure of a bifunctional transformylase and cyclohydrolase enzyme in purine biosynthesis.
Nat.Struct.Biol. 8 402 406 (2001)
PMID: 11323713 DOI: 10.1038/87555

Abstact

ATIC, the product of the purH gene, is a 64 kDa bifunctional enzyme that possesses the final two activities in de novo purine biosynthesis, AICAR transformylase and IMP cyclohydrolase. The crystal structure of avian ATIC has been determined to 1.75 A resolution by the MAD method using a Se-methionine modified enzyme. ATIC forms an intertwined dimer with an extensive interface of approximately 5,000 A(2) per monomer. Each monomer is composed of two novel, separate functional domains. The N-terminal domain (up to residue 199) is responsible for the IMPCH activity, whereas the AICAR Tfase activity resides in the C-terminal domain (200-593). The active sites of the IMPCH and AICAR Tfase domains are approximately 50 A apart, with no structural evidence of a tunnel connecting the two active sites. The crystal structure of ATIC provides a framework to probe both catalytic mechanisms and to design specific inhibitors for use in cancer chemotherapy and inflammation.
