1F2S image
Deposition Date 2000-05-29
Release Date 2000-06-05
Last Version Date 2024-10-16
Entry Detail
PDB ID:
1F2S
Title:

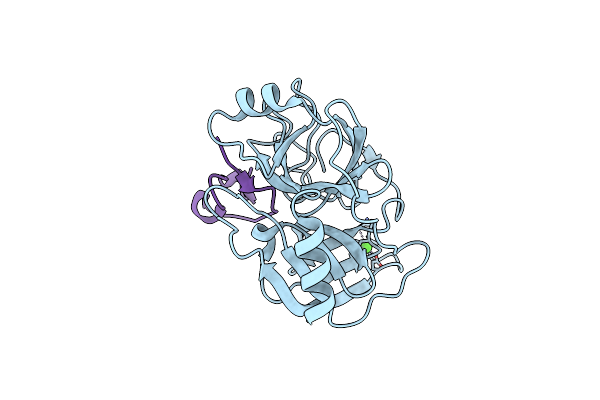

CRYSTAL STRUCTURE OF THE COMPLEX FORMED BETWEEN BOVINE BETA-TRYPSIN AND MCTI-A, A TRYPSIN INHIBITOR OF SQUASH FAMILY AT 1.8 A RESOLUTION
Biological Source:
Source Organism:
Bos taurus (Taxon ID: 9913)
Momordica charantia (Taxon ID: 3673)
Method Details:
Experimental Method:
Resolution:
1.79 Å
R-Value Free:
0.22
R-Value Work:
0.17
R-Value Observed:
0.18
Space Group:
P 21 21 21
Macromolecular Entities
Polymer Type:polypeptide(L)
Molecule:TRYPSIN
Gene (Uniprot):PRSS1
Chain IDs:A (auth: E)
Chain Length:223
Number of Molecules:1
Biological Source:Bos taurus
Polymer Type:polypeptide(L)
Molecule:TRYPSIN INHIBITOR A
Chain IDs:B (auth: I)
Chain Length:28
Number of Molecules:1
Biological Source:Momordica charantia
Ligand Molecules
Primary Citation
Crystal structure of the complex formed between bovine beta-trypsin and MCTI-A, a trypsin inhibitor of squash family, at 1.8-A resolution.
J.Protein Chem. 18 505 509 (1999)
PMID: 10524768 DOI: 10.1023/A:1020690931043

Abstact

The stoichiometric complex formed between bovine beta-trypsin and Momordica charantia, Linn. Cucurbitaceae trypsin inhibitor A (MCTI-A) was crystallized and its X-ray crystal structure was refined to a final R value of 0.179 using data of 7.0- to 1.8-A resolution. Combination with results on the complex of MCTI-A with porcine trypsin gives the sequence of MCTI-A definitely, of which 13 residues are conserved compared with other squash family trypsin inhibitors. Its spatial structure and the conformation of its primary binding segment from Cys3I (P3) to Glu7I (P3'), which contains a reactive scissile bond Arg5I C-Ile6I N, were found to be very similar to the other squash family proteinase inhibitors.
