1DFU image
Deposition Date 1999-11-21
Release Date 1999-12-02
Last Version Date 2024-02-07
Entry Detail
PDB ID:
1DFU
Keywords:
Title:

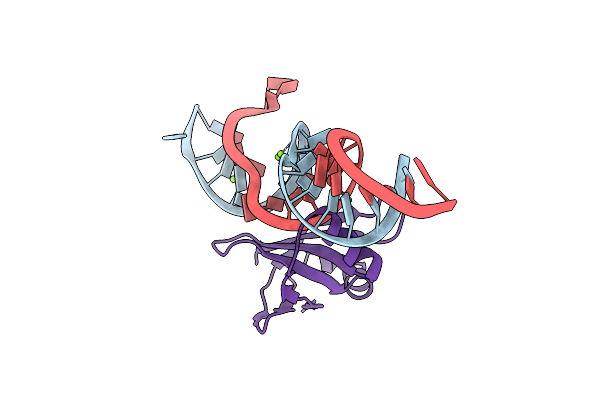

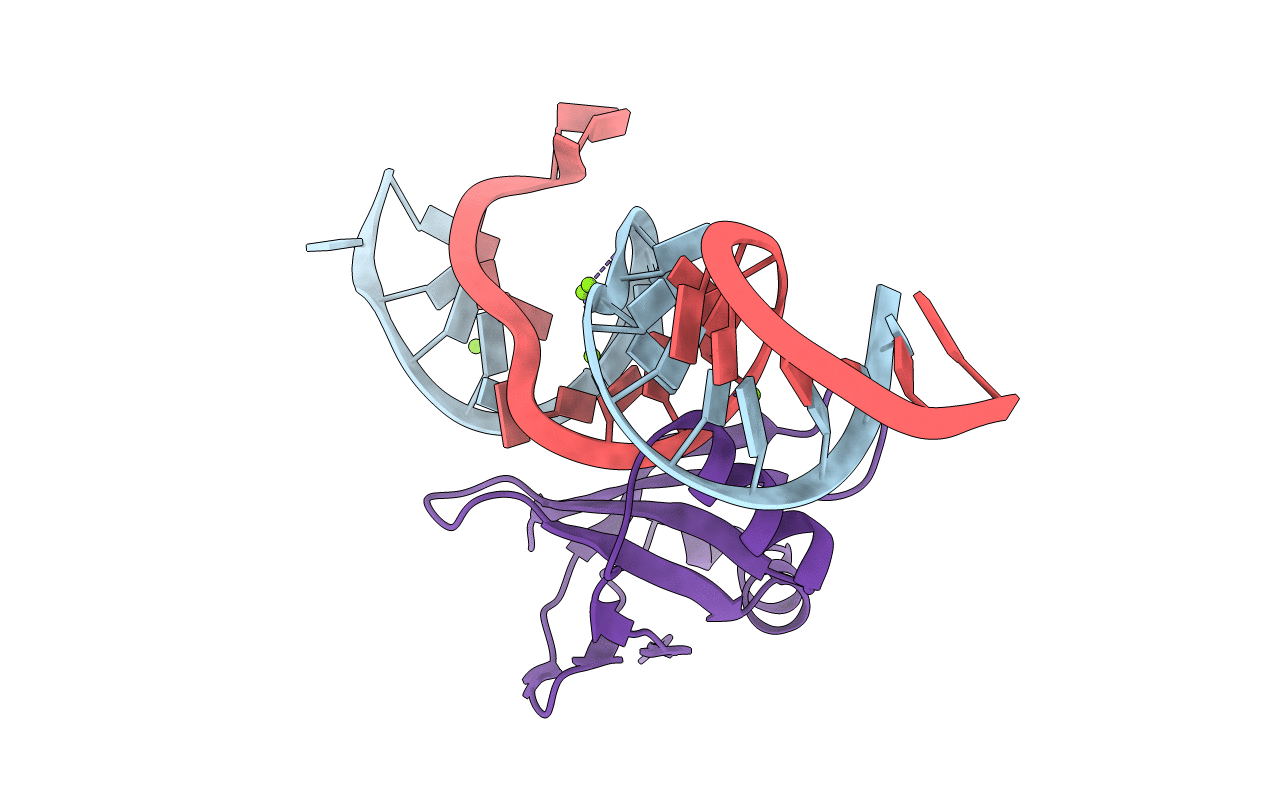

CRYSTAL STRUCTURE OF E.COLI RIBOSOMAL PROTEIN L25 COMPLEXED WITH A 5S RRNA FRAGMENT AT 1.8 A RESOLUTION
Biological Source:
Source Organism:
Escherichia coli (Taxon ID: 562)
Host Organism:
Method Details:
Experimental Method:
Resolution:
1.80 Å
R-Value Free:
0.22
R-Value Work:
0.20
R-Value Observed:
0.22
Space Group:
C 2 2 21
Macromolecular Entities
Polymer Type:polyribonucleotide
Molecule:5S RRNA
Chain IDs:A (auth: M)
Chain Length:19
Number of Molecules:1
Biological Source:
Polymer Type:polyribonucleotide
Molecule:5S RRNA
Chain IDs:B (auth: N)
Chain Length:19
Number of Molecules:1
Biological Source:
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:RIBOSOMAL PROTEIN L25
Gene (Uniprot):rplY
Chain IDs:C (auth: P)
Chain Length:94
Number of Molecules:1
Biological Source:Escherichia coli
Ligand Molecules
Primary Citation
Structure of Escherichia coli ribosomal protein L25 complexed with a 5S rRNA fragment at 1.8-A resolution.
Proc.Natl.Acad.Sci.USA 97 2023 2028 (2000)
PMID: 10696113 DOI: 10.1073/pnas.97.5.2023

Abstact

The crystal structure of Escherichia coli ribosomal protein L25 bound to an 18-base pair portion of 5S ribosomal RNA, which contains "loop E," has been determined at 1.8-A resolution. The protein primarily recognizes a unique RNA shape, although five side chains make direct or water-mediated interactions with bases. Three beta-strands lie in the widened minor groove of loop E formed by noncanonical base pairs and cross-strand purine stacks, and an alpha-helix interacts in an adjacent widened major groove. The structure of loop E is largely the same as that of uncomplexed RNA (rms deviation of 0.4 A for 11 base pairs), and 3 Mg(2+) ions that stabilize the noncanonical base pairs lie in the same or similar locations in both structures. Perhaps surprisingly, those residues interacting with the RNA backbone are the most conserved among known L25 sequences, whereas those interacting with the bases are not.
