1D02 image
Deposition Date 1999-09-08
Release Date 2000-03-08
Last Version Date 2024-02-07
Entry Detail
PDB ID:
1D02
Keywords:
Title:

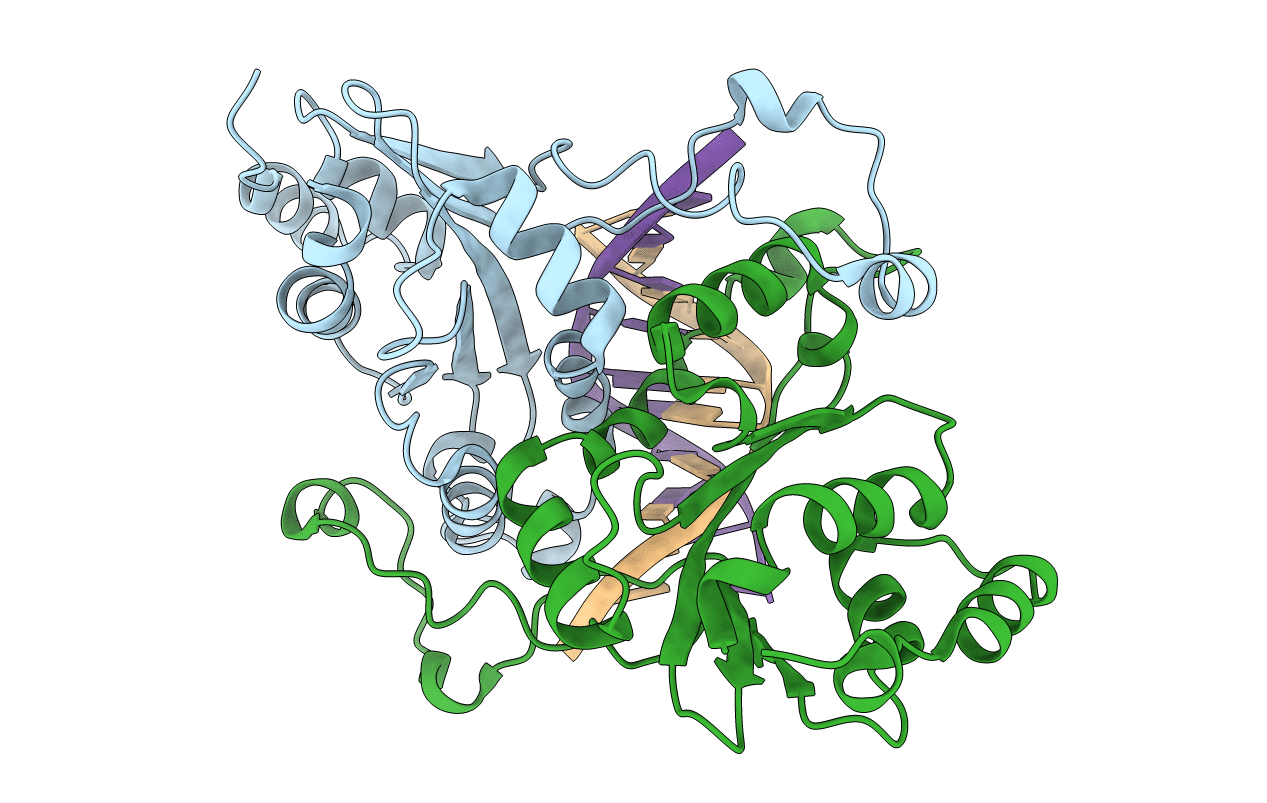

CRYSTAL STRUCTURE OF MUNI RESTRICTION ENDONUCLEASE IN COMPLEX WITH COGNATE DNA
Biological Source:
Source Organism:
Mycoplasma (Taxon ID: 2093)
Host Organism:
Method Details:
Experimental Method:
Resolution:
1.70 Å
R-Value Free:
0.21
R-Value Work:
0.18
R-Value Observed:
0.18
Space Group:
P 21 21 21
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:TYPE II RESTRICTION ENZYME MUNI
Gene (Uniprot):munIR
Mutagens:D83A
Chain IDs:C (auth: A), D (auth: B)
Chain Length:202
Number of Molecules:2
Biological Source:Mycoplasma
Polymer Type:polydeoxyribonucleotide
Molecule:DNA (5'-D(*GP*CP*CP*AP*AP*TP*TP*GP*GP*C)-3')
Chain IDs:A (auth: C), B (auth: D)
Chain Length:10
Number of Molecules:2
Biological Source:
Primary Citation
Crystal structure of MunI restriction endonuclease in complex with cognate DNA at 1.7 A resolution.
EMBO J. 18 5805 5816 (1999)
PMID: 10545092 DOI: 10.1093/emboj/18.21.5805

Abstact

The MunI restriction enzyme recognizes the palindromic hexanucleotide sequence C/AATTG (the '/' indicates the cleavage site). The crystal structure of its active site mutant D83A bound to cognate DNA has been determined at 1.7 A resolution. Base-specific contacts between MunI and DNA occur exclusively in the major groove. While DNA-binding sites of most other restriction enzymes are comprised of discontinuous sequence segments, MunI combines all residues involved in the base-specific contacts within one short stretch (residues R115-R121) located at the N-terminal region of the 3(10)4 helix. The outer CG base pair of the recognition sequence is recognized solely by R115 through hydrogen bonds made by backbone and side chain atoms to both bases. The mechanism of recognition of the central AATT nucleotides by MunI is similar to that of EcoRI, which recognizes the G/AATTC sequence. The local conformation of AATT deviates from the typical B-DNA form and is remarkably similar to EcoRI-DNA. It appears to be essential for specific hydrogen bonding and recognition by MunI and EcoRI.
