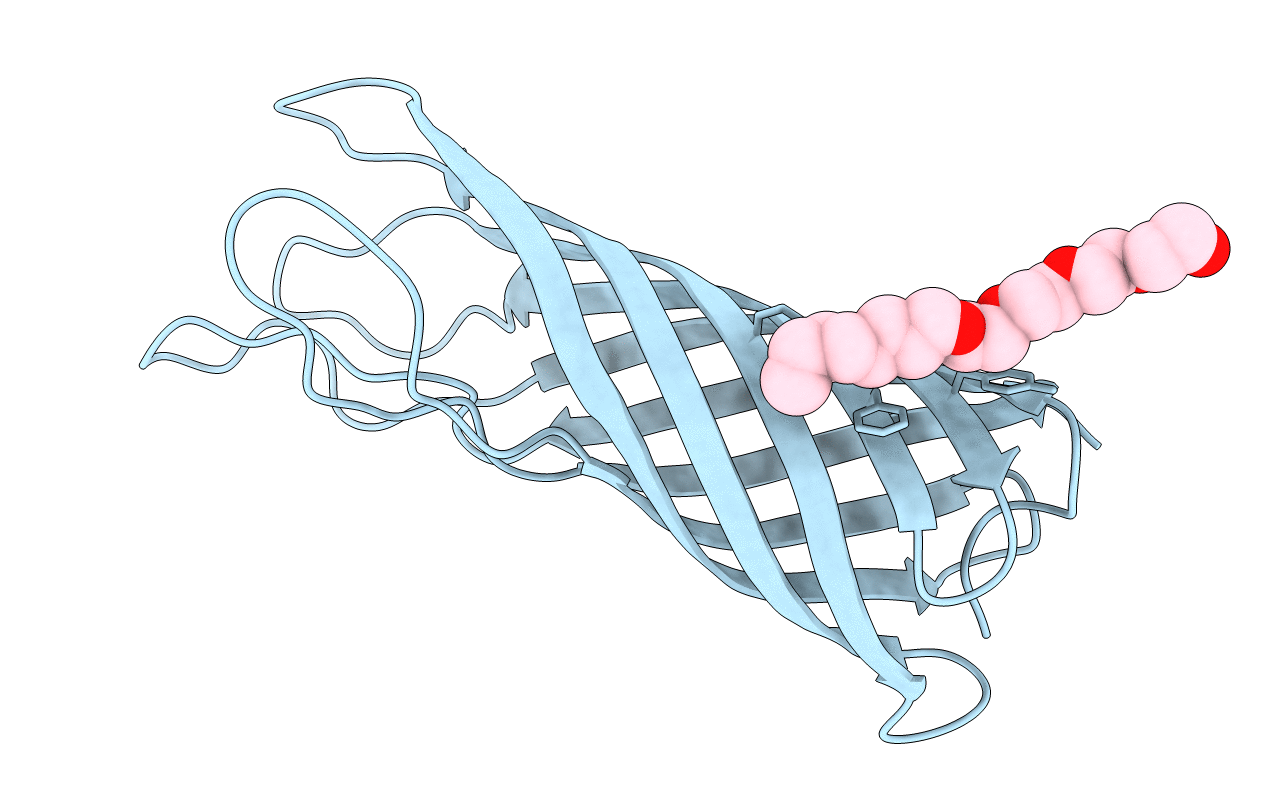

1BXW image
Deposition Date 1998-10-03
Release Date 1998-10-14
Last Version Date 2024-05-22
Entry Detail
PDB ID:
1BXW
Title:
OUTER MEMBRANE PROTEIN A (OMPA) TRANSMEMBRANE DOMAIN
Biological Source:
Source Organism:
Method Details:
Experimental Method:
Resolution:
2.50 Å
R-Value Free:
0.23
R-Value Work:
0.18
Space Group:
C 1 2 1
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:PROTEIN (OUTER MEMBRANE PROTEIN A)
Gene (Uniprot):ompA
Mutagens:F23L, Q34K, K107Y
Chain IDs:A
Chain Length:172
Number of Molecules:1
Biological Source:Escherichia coli BL21(DE3)
Ligand Molecules
Primary Citation
Structure of the outer membrane protein A transmembrane domain.
Nat.Struct.Biol. 5 1013 1017 (1998)
PMID: 9808047 DOI: 10.1038/2983

Abstact

The outer membrane protein A of Escherichia coli (OmpA) is an intensely studied example in the field of membrane protein folding. We have determined the structure of the OmpA transmembrane domain consisting of residues 1-171, by X-ray diffraction analysis, to a resolution of 2.5 A. It consists of a regular, extended eight-stranded beta-barrel and appears to be constructed like an inverse micelle with large water-filled cavities, but does not form a pore. Surprisingly, the cavities seem to be highly conserved during evolution. The structure corroborates the concept that all outer membrane proteins consist of beta-barrels. The structure constitutes a beta-barrel membrane anchor that appears to be the outer membrane equivalent of the single-chain alpha-helix anchor of the inner membrane.
