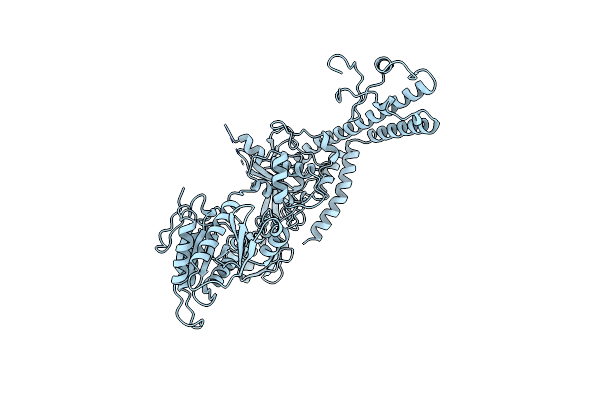

1BGW image
Deposition Date 1996-02-20
Release Date 1996-07-11
Last Version Date 2024-02-07
Entry Detail
PDB ID:
1BGW
Keywords:
DNA BINDING PROTEIN
Title:
TOPOISOMERASE RESIDUES 410-1202,
Biological Source:
Source Organism:
Saccharomyces cerevisiae (Taxon ID: 4932)
Host Organism:
Saccharomyces cerevisiae
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
2.70 Å
R-Value Free:
0.27
R-Value Work:
0.22
R-Value Observed:
0.22
Space Group:
P 43 21 2
1BGW validation report
Macromolecular Entities
Protein Blast
Polymer Type:polypeptide(L)
Molecule:TOPOISOMERASE
Gene (Uniprot):TOP2
Chain IDs:A
Chain Length:793
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae
UniProt ID:P06786 Pfam ID:PF01751, PF16898, PF00521 EC:5.6.2.2
Primary Citation
Structure and mechanism of DNA topoisomerase II.
Nature 379 225 232 (1996)
PMID: 8538787 DOI: 10.1038/379225a0

Abstact

The crystal structure of a large fragment of yeast type II DNA topoisomerase reveals a heart-shaped dimeric protein with a large central hole. It provides a molecular model of the enzyme as an ATP-modulated clamp with two sets of jaws at opposite ends, connected by multiple joints. An enzyme with bound DNA can admit a second DNA duplex through one set of jaws, transport it through the cleaved first duplex, and expel it through the other set of jaws.

Legend

Protein

Chemical

Disease

Primary Citation of related structures
1BGW
