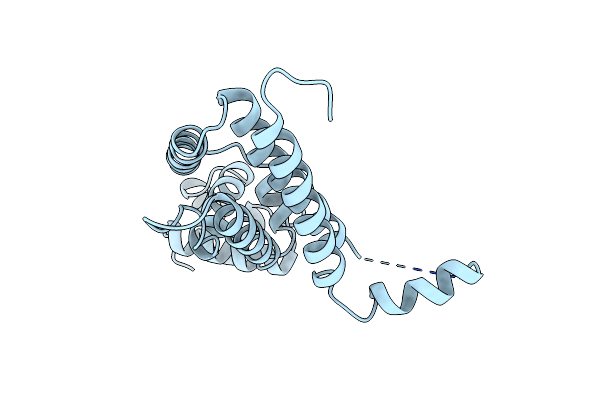

1A6I image
Entry Detail
PDB ID:
1A6I
Title:
TET REPRESSOR, CLASS D VARIANT
Biological Source:
Source Organism:
Host Organism:
PDB Version:
Deposition Date:
1998-02-25
Release Date:
1999-03-02
Method Details:
Experimental Method:
Resolution:
2.40 Å
R-Value Free:
0.27
R-Value Work:
0.21
R-Value Observed:
0.21
Space Group:
I 41 2 2
Macromolecular Entities
Polymer Type:polypeptide(L)
Description:TETRACYCLINE REPRESSOR PROTEIN CLASS D
Mutations:A2S, N5D, R6K, E7S, S8K, D11N, A12S, T20V, D23E, I36V
Chain IDs:A
Chain Length:217
Number of Molecules:1
Biological Source:Escherichia coli
Primary Citation
Conformational changes of the Tet repressor induced by tetracycline trapping.
J.Mol.Biol. 279 439 447 (1998)
PMID: 9642048 DOI: 10.1006/jmbi.1998.1775

Abstact

The X-ray crystal structure analysis of inducer-free Tet repressor, TetR, at 2.4 A resolution identifies one of two openings of the tunnel-like binding site as the entrance for the inducer tetracycline-Mg2+, [Mg Tc]+. Recognition and binding of the inducer unleashes conformational changes leading to the induced state of TetR. In the first step, the C-terminal turn of alpha-helix 6 unwinds, thereby altering the orientation of alpha-helix 4. This different orientation of alpha-helix 4 is stabilized by a series of hydrogen bonds mediated through a chain of eight water molecules. The alpha-helix 4 connects the DNA-binding domain (alpha-helices 1 to 3) to the rigid TetR core, and thus regulates gene expression through its respective orientations.
